3A100M/200M/300M;4A100M/200M/300M/400M
NEU-MASTER

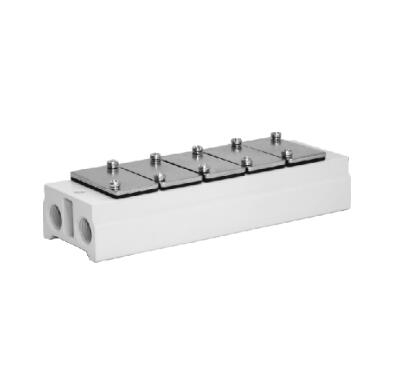

Manifold For 3A/4A Air Valve
Availability: | |
---|---|
3A Air Valve Manifold :
3A100M Manifold :For the 3A100 Series air valve ; Max 16 Station
3A200M Manifold :For the 3A200 Series air valve ; Max 16 Station
3A300M Manifold :For the 3A300 Series air valve ; Max 16 Station
Specification:
Item\Manifold Model | 100M | 200M | 300M |
Fluid | Air(to be filtered by 40 μm filter element) | ||
Temperature ℃ | -20~70 | ||
Adaotable valve’s series | 3A100 Series | 3A200 Series | 3A300 Series |
The Order Code For 3A Air Actuated Valve(Air Valve)
Why we chose the Manifold for the air valve ?
1. It is available to integrate the direction control valves of the same series to form valve group to save space and cost;
2. It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring;
3. Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves
that are connected.
4A Air Valve Manifold :
4A100M Manifold :For the 4A100 Series air valve ; Max 16 Station
4A200M Manifold :For the 4A200 Series air valve ; Max 16 Station
4A300M Manifold :For the 4A300 Series air valve ; Max 16 Station
4A400M Manifold :For the 4A400 Series air valve ; Max 16 Station
Specification:
Item\Manifold Model | 100M | 200M | 300M | 400M |
Fluid | Air(to be filtered by 40 μm filter element) | |||
Temperature ℃ | -20~70 | |||
Adaotable valve’s series | 4A100 Series | 4A200 Series | 4A300 Series | 4A400 Series |
The Order Code For 4A Air Actuated Valve(Air Valve)
What's the air valve manifold ?
It is a Aluminium metal plate , with certain holes drilled . It was designed to combine pcs of air valve to work together to save space ,connectors , air hose . And easy to be installed on the machine .
Why we chose the Manifold for the air valve ?
1. It is available to integrate the direction control valves of the same series to form valve group to save space and cost;
2. It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring;
3. Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves
that are connected.
What's is the blank plate ?
It is a blank metal palte with a rubber plate seal .
There must in some situation that we only need to combine four pcs Air Valve , but we only keep a five station manifold in our hand . So we must block the rest one station . That's the blank plate usage .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Air Valve Manifold , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Air Valve Manifold, Valve Manifold, Pneumatic Valve Manifold, Valve Manifold Block, Pneumatic Manifold are all for integrate the direction control valves
