Availability: | |
---|---|
Applications
1.Industrial assembly
2. Heavy duty industrial applications
3. Outdoor contactor
4. Automotive repair and body shops
5. Machine tools
Technical data
Working Pressure:Safety factor 4 to 1
Temperature Range:-20℃ to +60℃(-4°F to +140°F)
Working Length: 50% to 80% of tube length
Features
1.Additional reinforcement
2.Excellent coil memory
3.Highly kink and abrasion resistance
4.Maximum flexibility
5.Silicon-free
Order information
Example: CURA50805MBU-a

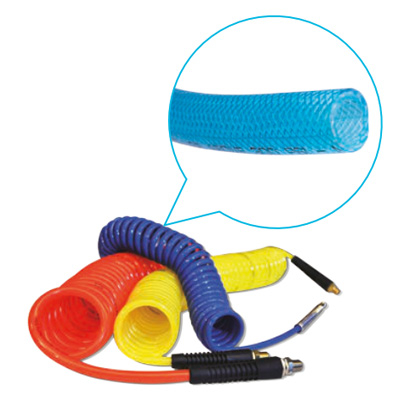

CURA50805MBU-a-Coiled reinforced polyurethane air gose
CURA50805MBU-a-Tube l.D.5.0mm
CURA50805MBU-a-Tube O.D.8.0mm
CURA50805MBU-a-Tube length 5m
CURA50805MBU-a-Color(Blue)
CURA50805MBU-a-Tail style a
Metric size
Part Number | Tube O.D. (mm) | Tube I.D. (mm) | MAX.Working Pressure AT 23℃(bar) | MIN.Burst Pressure AT 23℃(bar) | Coil I.D. (mm) | Tube Length (meter) |
CURA5080 | 5 | 8 | 15 | 60 | 35 | 5,8,12,15 |
CURA6510 | 6.5 | 10 | 15 | 60 | 50 | 5,8,12,15 |
CURA8012 | 8 | 12 | 15 | 60 | 60 | 5,8,12,15 |
CURA85125 | 8.5 | 12.5 | 15 | 60 | 60 | 5,8,12,15 |
CURA1015 | 10 | 15 | 15 | 60 | 76 | 5,8,12,15 |
CURA1116 | 11 | 16 | 15 | 60 | 76 | 5,8,12,15 |
Imperial size
Part Number | Tube O.D. (inch) | Tube I.D. (inch) | MAX.Working Pressure AT 73°F(psi) | MIN.Burst Pressure AT 73°F(bar) | Coil I.D.(inch) | Tube Length(ft) |
CURA14375 | 1/4 | 0.375 | 200 | 800 | 2 | 15,25,30,50 |
CURA38562 | 3/8 | 0.562 | 200 | 800 | 2-1/2 | 15,25,30,50 |
CURA12732 | 1/2 | 0.732 | 200 | 800 | 3 | 15,25,30,50 |
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Color code
•BU | Blue |
•TBU | Transparent Blue |
•TY | Transparent Yellow |

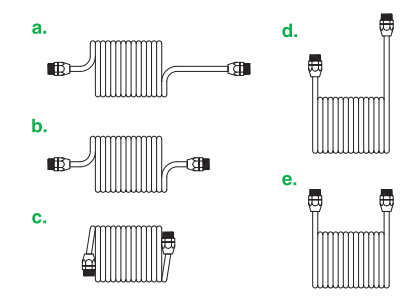

Tail style choice
Dimensions for coiled tubing
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.

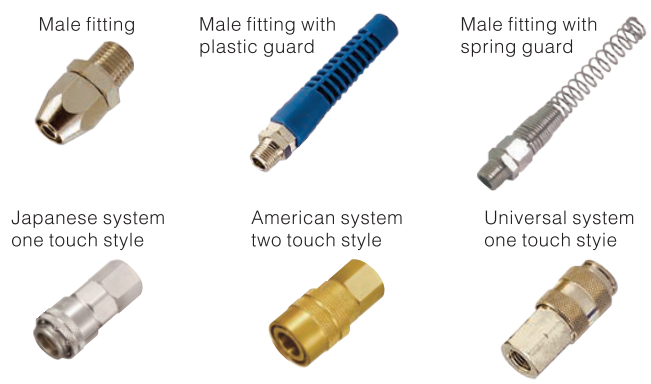

Suitable assembly fittings & couplers
Note:
1.Strongly suggest fitting or quick coupler assemblies are permanently attached to the
hose at the factory,resulting in the most durable fitting system available
2.For selection of coupler please refer to the catalog of coupler.plug.fitting
