GF Series Compressed Air Filter
Same standard as AIRTAC GF type air filter
Modular design ,compact configuration
Air Water Separator GF200/300/400/600
Port Size :1/8"-1" , NPT thread are vailable
Quick mounting pattern .
Reasonable price for the normal using.
GF Series Compressed Air Filter.pdf

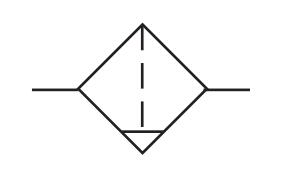

Product Symbol:
Product feature :
1. Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain.
2. Air Dryer Filter has low pressure loss, high efficiency in separating water and large drain bowl capacity.
3. Filtering grade includes 5m and 40m(Optional).
4. Three drain types are available: manual drain, semi-auto drain and automatic drain.
5. The bracket can be selected for installation.
Ordering Code:
Specification
Compressed Air Filtration Model | GF200-06 | GF200-08 | GF300-08 | GF300-10 | GF300-15 | GF400-10 | GF400-15 | GF600-20 | GF600-25 |
Fluid | Air | ||||||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT1 |
Fitering grade | 40μm or 5μm | ||||||||
Pressure range | Semi-auto and automatic drain:0.15~1.0MPa(20~145psi); Manual drain: 0~0.9MPa(0~145psi) | ||||||||
Proof pressure | 1.5MPs(215psi) | ||||||||
Temperature range | -5~70℃ | ||||||||
Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | |||||
Weight | 130g | 360g | 680g | 1440g |
Where the GF series AIRTAC standard Air Line Dryer were used ? (Appliliance)
Normally it were installed togetherly with the machine, the filter with water separator ,to cleans the compressed air of fluid oil, condensation and dirt particles. .
Or as the airline air source compressed air filter ,we could get the clean ,and dry compressed air .
The difference with other air filter.
The max working pressure could reach 1.0Mpa , Three drain types are available: manual drain, semi-auto drain and automatic drain.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Compressed Air Filter, Air Water Separator, Air Dryer Filter, Compressed Air Filtration, Air Line Dryer are all for cleaning the compressed air of fluid oil, condensation and dirt particles.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ? It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
