Model: KL2231001/02/03/04
NEU-MASTER
KL2231001/02/03/04:1/8";1/4"
Availability: | |
---|---|
KL223 Series Electric Solenoid Valves /Electric Solenoid Valves 1/4" / Electric Solenoid Valve 1/2" / Electric Solenoid Valves 1" / Electric Solenoid Valves 2" ●Model: KL223 Series Electric Solenoid Valves 1/4" / Electric Solenoid Valve 1/8" / Electric Solenoid Valves 1" Electric Solenoid Valves 2" ●Medium: Water;Oil(Below 50 CST);Air ;Neutral Gas ●Acting Type: 1/8" to 1/4" Direct Acting; 3/8" to 2" Diaphragm ●Seal Material: EPDM or Viton for -5∽150℃ ; NBR for -5∽80℃ ●Port Size :1/8",1/4";3/8";1/2";3/4";1" ,1-1/4",1-1/2",2" ZG ,PT, NPT are available Electric Solenoid Valves Catalog: KL223 Series two ways electric solenoid valve.pdf Electric Solenoid Valve Symbol: Electric Water Solenoid Valve Ordering Code: |
Electric Solenoid Valve Feature:

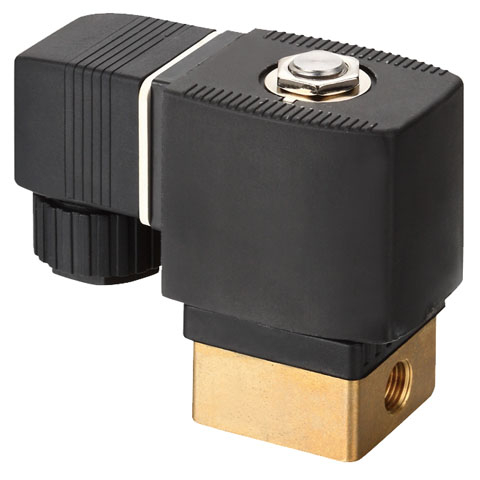

Normally closed (N/C)electric solenoid valve is constructed with a durable brass body, two way inlet and outlet ports with female threaded (NPTor G ) connections, and heat and oil resistant Viton gasket.
Suitable for use with hot or cold water, gases, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve. In cases where this is necessary, it is recommended user install a computer fan to keep valve cool.
Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems or to control flow of inert gas.
conformity managed in accordance with standards:
ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.
The Electric Solenoid Valve Specification:
Electric Solenoid Valve Model | KL2231001 | KL2231002 | KL2231003 | KL2231004 | |
Body Material | Brass | ||||
Orifice Size (mm) | 1.5 | 2 | 3 | 4 | |
Pipe Thread | 1/8" or 1/4" | ||||
Operating Pressure Mpa | 0∽2.5 | 0∽1.5 | 0∽1.0 | 0∽0.4 | |
Ambient Temperature | -10∽55℃ | ||||
Medium Temperature | EPDM -5∽120℃ ; Viton for -5∽150℃ ; NBR for -5∽80℃ | ||||
Kv Value | 0.1 | 0.15 | 0.31 | 0.54 | |
Coil Power | AC(VA) | 16 Protection Degree: IP65 | |||
DC(W) | 13 Protection Degree: IP65 |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Electric Solenoid Valves, Electric Solenoid Valves 1/4", Electric Solenoid Valve 1/2", Electric Solenoid Valves 1", Electric Solenoid Valves 2" are for the liquid flow control.
