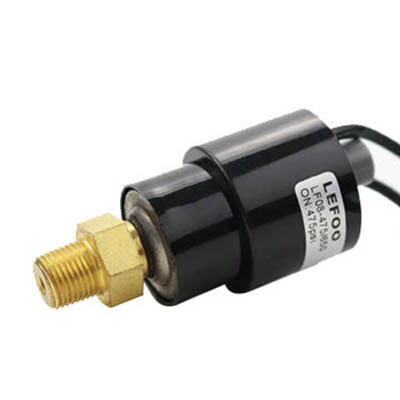

PF08-M Manual Reset Pressure Switch
Product Details
The PF08M switches are fixed set point, factory calibrated pressure switches. LF08M switch is manual reset, it can be Normally open or normally close contacts. All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form.
Typical Applications: .
Safety controls / air conditioning / refrigeration / vacuum tank pressure control/ braking system of automobile
Specification:
| Series No. | PF08M |
| Medium | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure Set Point | OFF：10Bar~47Bar, ON:4~42Bar |
| Proof Pressure | 3.5～5.5MPa |
| Burst Pressure | 200Bar |
| Operating Temperature Range | -40℃～120℃ |
| Switch Type | Direct action, Wire lead, NO or NC |
| Electric Rating | 120V/240V/380V/375V |
| Terminals | Wire leads |
| Life at Related Load | 100,000 cycles |
| Connection | 7/16-20UNF |
| Options | Various connector thread sizes; wire leads (potted & sealed) |
Offer PF08-M Manual Reset Pressure Switch by China PF08-M Manual Reset Pressure Switch manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
