R Series Air Pressure Regulator Valve FESTO Standard

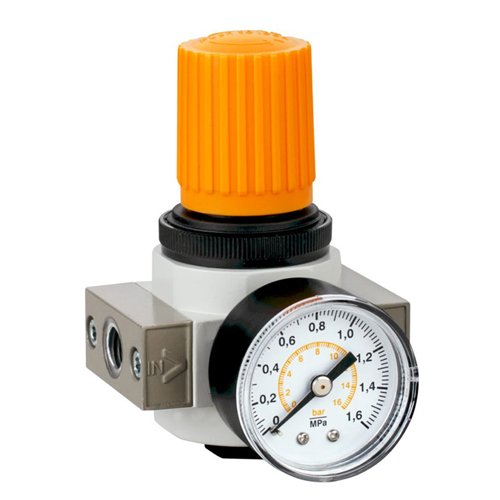

R-MINI/MIDI/MAXI Regulator With Gauge
The R maintain im putting constant operating pressure despite fluctuation in Line pressure and the amount of air consumed.
Port Size :1/8"-1" , NPT thread are vailable
Reliable adjustment of oil supply,quick mounting pattern .
Easy to maintain and operate ,long service life .
R Sereis Air Pressure Regulator Valve.pdf
R Air Pressure Regulator Valve Symbol:
R Air Pressure Regulator Valve Installation and use
The R air regulator maintain inputting operating pressure constantly despite fluctuation in line and the amount of air consumed.
R Air Pressure Regulator Valve Ordering Code:
R Air Pressure Regulator Valve Specification
Size | Micro | Mini | Midi | Maxi | |||||||||||
Pneumatic connection | M5 | M7 | G1/8 | QS4 | QS6 | G1/8 | G1/4 | G3/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1/2 | G3/4 | G1 |
Operating medium | Compressed air | Filtered compressed air, lubricated or unlubricated, grade of filtration 40μm. | |||||||||||||
Design | Directly actuated diaphragm regulator | Pilot actuated piston regulator | |||||||||||||
Directly actuated diaphragm regulator | |||||||||||||||
Type of mounting | Via accessories | ||||||||||||||
In-line installation | |||||||||||||||
Front panel mounting | |||||||||||||||
Assembly position | Any | ||||||||||||||
Regulator lock | Rotary knob with lock | ||||||||||||||
- | Rotary knob with lock | ||||||||||||||
Input pressure (bar) | 1…10 | 1…16 | |||||||||||||
Max. hysteresis (bar) | 0.3 | 0.2 | 0.4 | ||||||||||||
Pressure regulation range (bar) | 0.5…7 | 0.5…7 | |||||||||||||
0.5…12 | |||||||||||||||
Pressure indication | Via pressure gauge | ||||||||||||||
M5 Prepared | G1/ 8 Prepared | G1/ 4 Prepared | |||||||||||||
Where the R series FESTO standard air pressure regulator valve were used ? (Appliliance)
Normally it were installed togetherly with the machine, for controling the inputing air pressure .
Or as the airline pressure controller ,we could get the stable air output pressure .
The difference with other air pressure regulator valve.
Higher air pressure controling design .
Compared with AR,GR...Sereis regulator, R Series has the same function , but with higher working pressure , reach to 1.2Mpa.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Pressure Regulator, FESTO Air Regulator, Air Regulator, Air Regulator Valve, Air Flow Regulator are all for controlling the mainline air pressrue .
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
R Series Air Pressure Regulator Valve FESTO Standard
R-MINI/MIDI/MAXI Regulator With Gauge
The R maintain im putting constant operating pressure despite fluctuation in Line pressure and the amount of air consumed.
Port Size :1/8"-1" , NPT thread are vailable
Reliable adjustment of oil supply,quick mounting pattern .
Easy to maintain and operate ,long service life .
R Sereis Air Pressure Regulator Valve.pdf

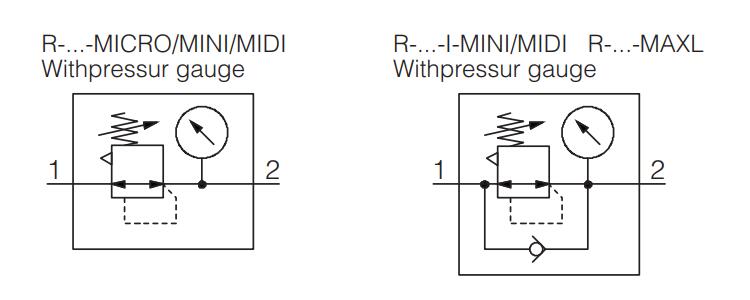

R Air Pressure Regulator Valve Symbol:
R Air Pressure Regulator Valve Installation and use
The R air regulator maintain inputting operating pressure constantly despite fluctuation in line and the amount of air consumed.

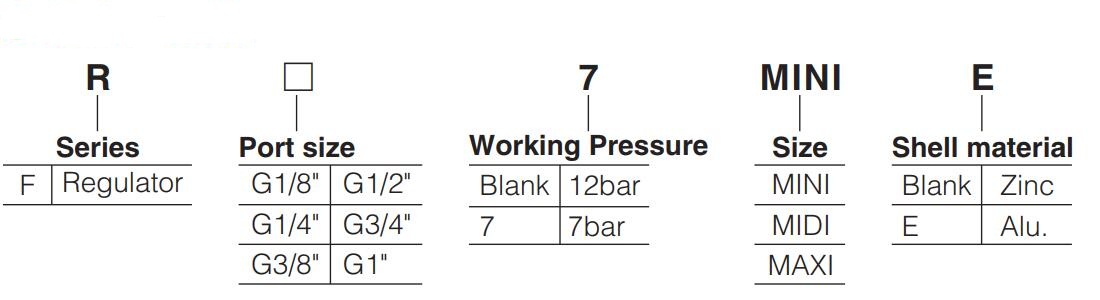

R Air Pressure Regulator Valve Ordering Code:
