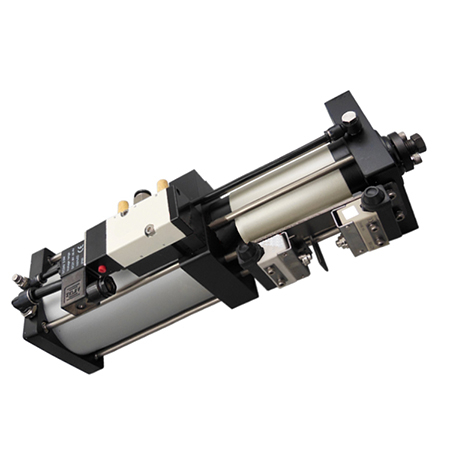

Booster Cylinder NPM UnClamping Cylinder 3.5T 4.5T 6.0T Equal To AIRTAC NPM Boosting Unclamping Cylinder
Product Feature
The booster unclamp cylinders by Neu-Master.
3.5T 4.5T 6.0T
Product Features:
●Special sealing materials can avoid the leakage of the hydraulic cylinder.
●Special surface treatment on the inner cylinder wall can improve resistance to wear and corrosion.
●With spindle blowing function
| Catalog: |

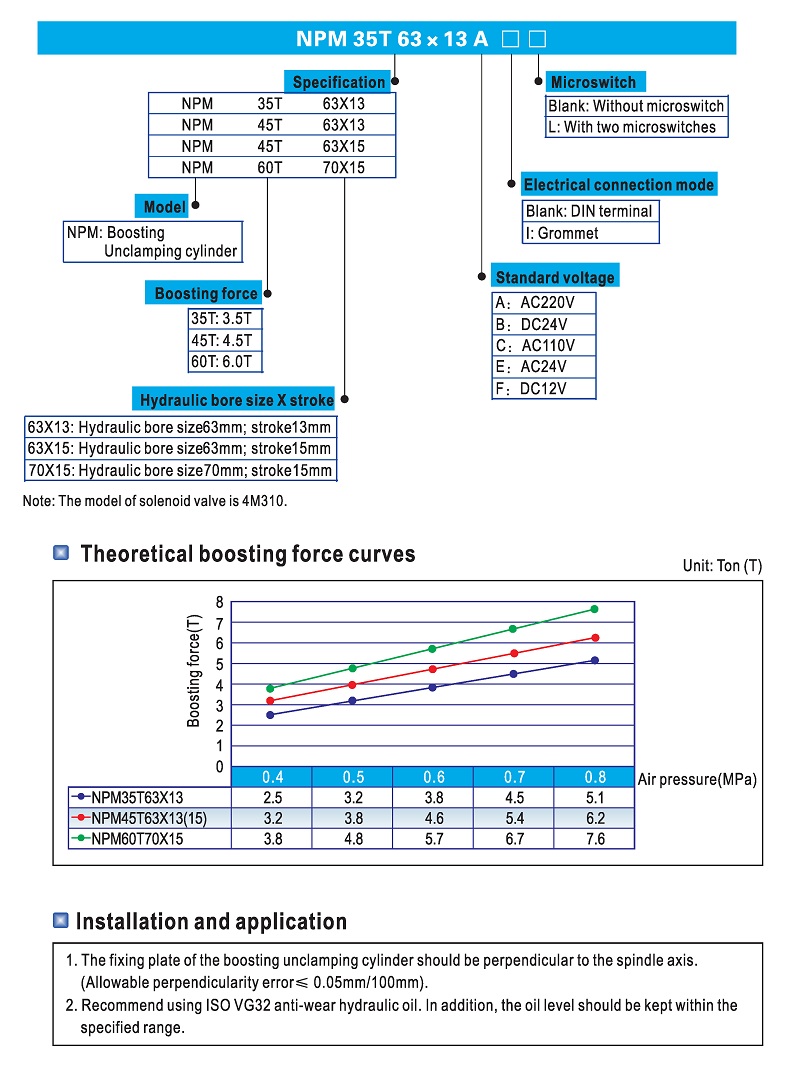

Booster Cylinder NPM UnClamping Cylinder Ordering Code
Booster Cylinder NPM UnClamping Cylinder Specification
| Specification | 3.5T | 4.5T | 6.0T |
| Acting Type | Hydraulic Side: Single Acting Pneumatic side:Double Acting | ||
| Fluid | Air (To be filtered by 40цm filter element) | ||
| Operating Pressure | 0.5∽0.8Mpa(72∽115Psi)(5∽8Bar) | ||
| Proof Pressure | 1.0Mpa(143Psi)(10Bar) | ||
| Temperature ℃ | -5∽60 | ||
| Weight | 7kg | 7.5kg | 9.5kg |
| Port Size | 3/8" | ||

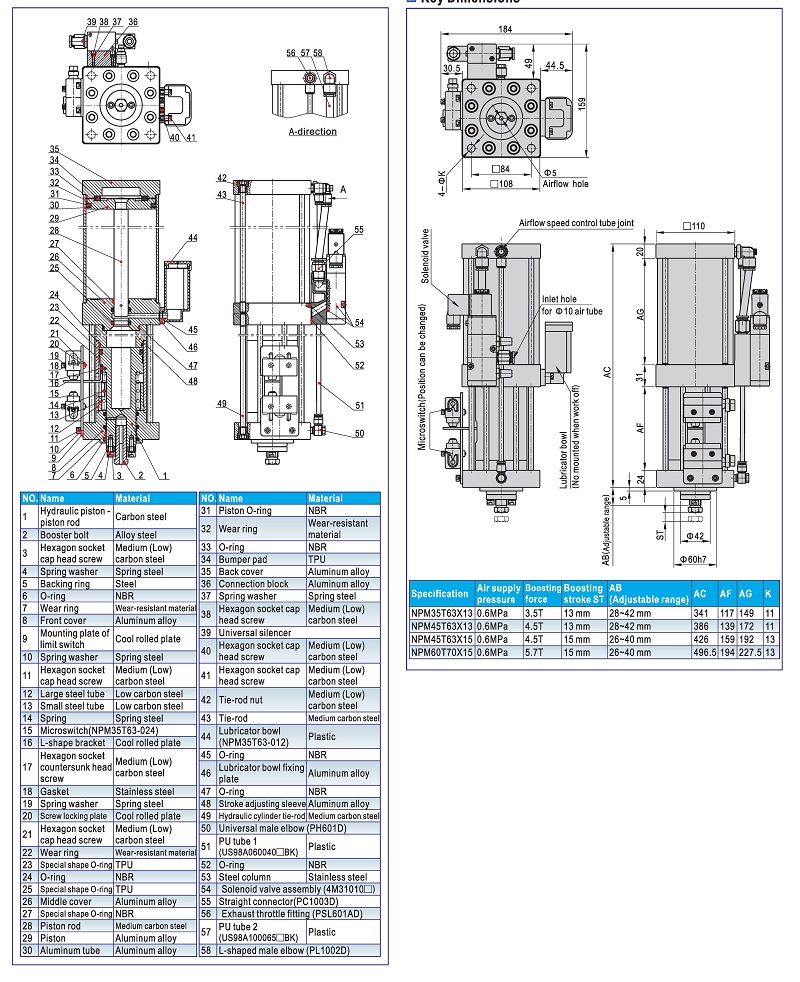

Booster Cylinder NPM UnClamping Cylinder dimensions
Neu-Master Pneumatic warrants these Booster Cylinder NPM UnClamping Cylinder to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Booster Cylinder NPM UnClamping Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
