SC Tie-rod Cylinder for Heavy Duty Work Bore Size 32 To 100mm Double Acting Pneumatic Cylinder
Product Feature
●Standard Pneumatic Cylinder manufactured by Neu-Master
●The seal of piston adopts two way seal structure. The tight dimension has the function of the grease reservation.
●It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability
●Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter
●The buffer adjustment of cylinder is smooth and steady
●Cylinder and mounting accessories with several specifications are optional
●Cylinder bore size from 30mm to 320mm .Tie Rod type cylinder, for the heavy duty work .

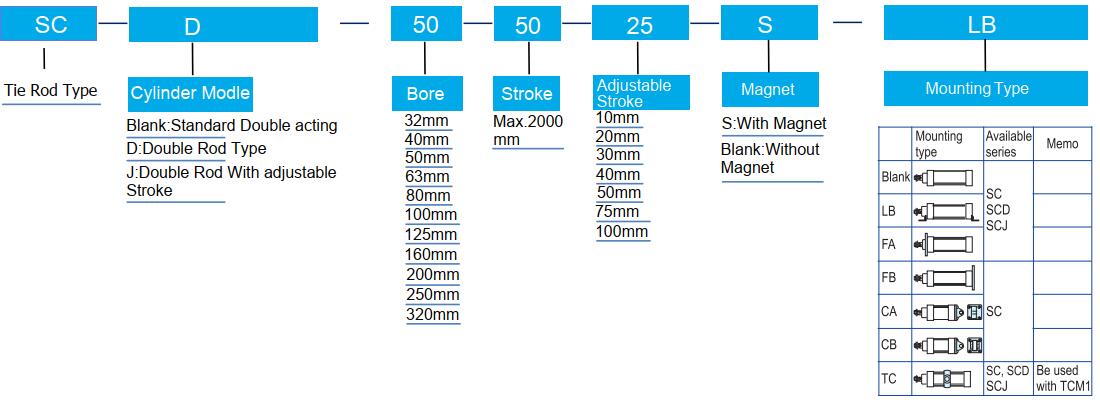

SC Pneumatic Cylinder Ordering Code
SC Pneumatic Cylinder Specification
| Bore Size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | |
| Acting type | Double Acting | |||||||||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||||||||
| Mouting Type | SC | Basic FA FB CA CB LB TC TCM1 | ||||||||||
| SCD,SCJ | Basic FA LB TC TCM1 | |||||||||||
| Operating Pressure | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | ||||||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | 1.5Mpa(215Psi)(15Bar) | ||||||||||
| Temperature℃ | -20∽80 | -20∽80 | ||||||||||
| Speed Range mm/s | 30∽800mm/s | 30∽800mm/s | ||||||||||
| Stroke Tolerance | 0∽250:+1.0; 251∽1000:+1.5; 1000∽1500:+2.0; | 0∽250:+1.0; 251∽1000:+1.5; 1000∽1500:+2.0; | ||||||||||
| Cushion Type | Variable Cushion | Variable Cushion | ||||||||||
Adjustable Cushion Stroke mm | 21 | 28 | 29 | 28 | 29 | 33 | 40 | 40 | ||||
| Port Size① | 1/8" | 1/4" | 3/8" | 1/2" | 1/2" | |||||||
① PT thread , G thread ,NPT thread are available
SC Pneumatic Cylinder Stroke
| Bore Size(mm) | Standard Stroke | Max. Stroke | Permissible Stroke |
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 | 1000 | 2000 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 160 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 250 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 320 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the SC penumatic cylinder , delivery time ?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
