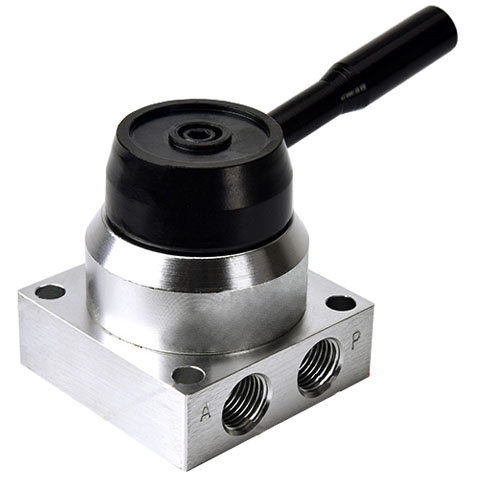

K24/K34 Rotary Hand Operated Valve
NEU-MASTER
4HV/4HVL-2/3/4
Availability: | |
---|---|

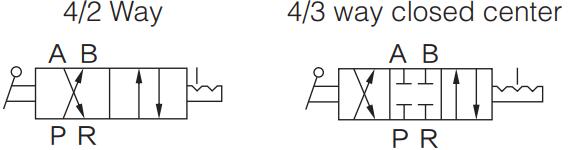

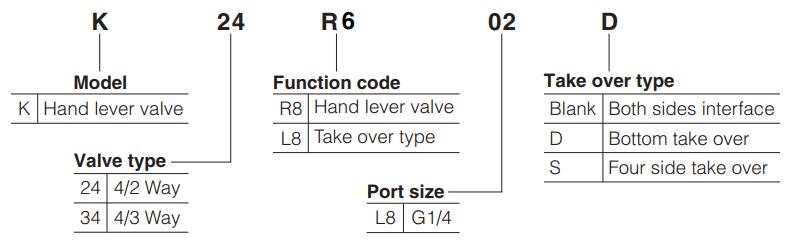

K24/K34 Rotary Hand Operated Valve Hand Lever Valve 1/4" Pipe Size 4/2 Way 4/3 Way ●K24/K34 series of hand operated valve, rotary style pneumatic directional control valve is hand operated. ●Available in 4/2 way or 4/3 way. Choose from multiple port sizes and thread types. ●4/3-way hand lever valve has three central functions for your choice ●The direction change turns lightly with good hand feeling and exact orientation ●Large effective circulating area leads to little pressure loss ●Panel and body installation are optional. The panel installation can be attached with installing nut. K24/K34 Hand Operated Valve Symbol: K24/K34 Hand Operated Valve Ordering Code: |
Catalog: K24-K34 Manual Control Hand Lever Valve.pdf |
1.The direction-change turns lightly with good hand feeling and exact orientation
2.Large eficetive circulating area leads to little pressure loss.
3.Panel and body installation are optional,the panel installation can be attached with installing nut
4.PT thread ,G thread, NPT thread are available
5.Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade.
K24/K34 Hand Operated Valve Parameter:
K24/K34 Manual Operated Valve | K24R8-L8 | K34R8-L8 | K24R8-L8D | K24R8-L8D | K24R8-L8S | K34R8-L8S |
Medium | Compressed Air (Filtered By 40μm Filter Element) | |||||
Operating | Manual Operated;Direct acting type | |||||
Pipe Size | In=Out=1/4" | |||||
Valve Type | 4/2Way | 4/3Way | 4/2Way | 4/3Way | 4/2Way | 4/3Way |
Lubrication | Not Required | |||||
Temperature | -20∽70℃ | |||||
Pressure Range | 0.15∽0.8Mpa(21∽114Psi ) | |||||
Proof Pressure | 1.5Mpa(215Psi) |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the K24/K34 Hand Operated Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Hand operated valve, Hand Operated Valve 4/2way, Hand Operated Valve 4/3way, Hand Operated Valve 1/4, Manual operated valve are for the air flow control.
