4R Manual Operated Push Valve
NEU-MASTER
4R110-M5/110-06/210-06/210-08/310-08/310-10/410-15
Availability: | |
---|---|

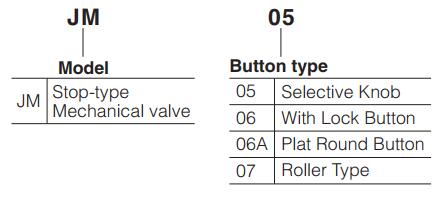

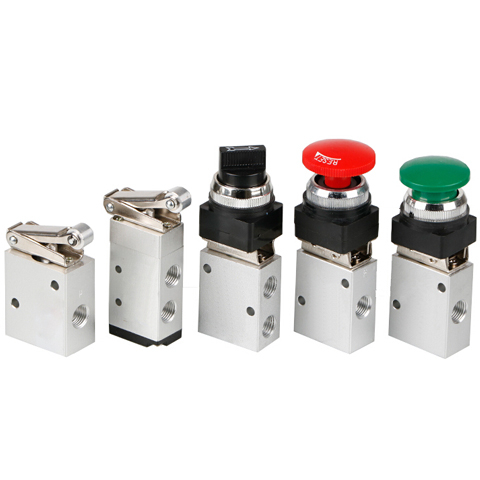

MOV Series Mechanical Valve JM Series Mechanical Valve ●MOV-01, Hand-tun select switch mechanical valve ●MOV-02, Action switch with two-way roller wheel mechanical valve ●MOV-03, Push-button switch with memory mechanical valve ●MOV-04, Raised head button switch mechanical valve ●JM-05 Selective Knob mechanical valve ●JM-05 With Lock Button mechanical valve ●JM-05 Plat Round Button mechanical valve ●JM-05 Roller Type mechanical valve MOV Mechanical Valve Ordering Code: JM Mechanical Valve Ordering Code:
|
Catalog: MOV Series Mechanical valve.pdf |
1. JM Series mechanical valves are controlled by manpower or mechanical power on different conditions.
2. We have two-position three way valves.
3. Various controlling forms are optional: roller type, selective knob, strengthened know,
large round bottom, plat round botton, convex round botton and with lock bottom
5. MOV Mechanical Valves are manual and mechanical controlled.
6. Light operation force, good seal, and long working life.
7. MOV series mechanically valves have various types:MOV321 Basic type, MOV321R (MOV-02) roller type, MOV321PP flat button type, MOV321PPL concave button type, MOV321PB (MOV-03A) Palm Button type, MOV321EB (MOV-03) with lock button type, MOV321TB/ MOV321LB (MOV-01) selective knob type for choose.
MOV Mechanical Valve
MOV Mechanical Valves | MOV-01 | MOV-02 | MOV-03 | MOV-04 |
Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
Pipe Size | 1/8" | |||
Valve Type | 3/2 Way Aluminium Alloy Body | |||
Lubrication | Not Required | |||
Temperature | 0∽70℃ | |||
Pressure Range | 0∽0.80Mpa |
JM Mechanical Valve
JM Mechanical Valves | JM-05 | JM-06 | JM-06A | JM-07 |
Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
Pipe Size | 1/8" | |||
Valve Type | 3/2 Way Aluminium Alloy Body | |||
Lubrication | Not Required | |||
Temperature | 0∽60℃ | |||
Pressure Range | 0∽0.80Mpa |
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the MOV,JM Mchanical valve,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Mechanical Valve, Mechanical Valve 1/4, Mechanical Valve 3/2 Way, mechanical air valve, mechanical pneumatic valve are for the air flow control.
