PY、PK、PW、PZA、PRG Series Gas operated quick intubation connector

PY、PK、PW、PZA、PRG Series Gas operated quick intubation connector

Product feature：
Quick plug pneumatic pipe joints are used in pneumatic pipe systems.
A wide variety of fittings can be used in all kinds of tracheal systems.
Even after installation, the direction of the pipe can be freely changed.
The nickel-plated copper body is resistant to corrosion and contamination.
All R and NPT thread adhesives act as seals.
Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

Specifications：

Use medium	Air, water
Pressure range	0~1.2MPa
Vacuum pressure	-100Kpa(10Torr)
Working temperature	-10°~60℃

PY Series

PY Series

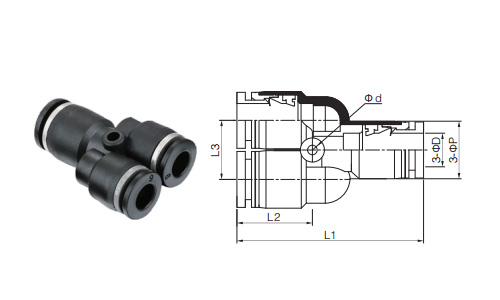

Model	ФD	L1	L2	L3	ФP	Фd
PY4	4	35.5	14	11	11	3.2
PY6	6	38	15	13	13	3.2
PY8	8	44.5	18.5	14.5	14.5	3.2
PY10	10	50	21	18	18.5	4.2
PY12	12	55	22	21	21	4.2
PY14	14	55.5	22	26	26	4.2
PY16	16	55.5	22	26	26	4.2
PY5/32	5/32	35.5	14	11	11	3.2
PY3/16	3/16	35.5	14	11	11	3.2
PY1/4	1/4	38	15	13	13	3.2
PY5/16	5/16	44.5	18.5	14.5	14.5	3.2
PY3/8	3/8	50	21	18	18.5	4.2
PY1/2	1/2	55	22	21	21	4.2

PW Series

PW series

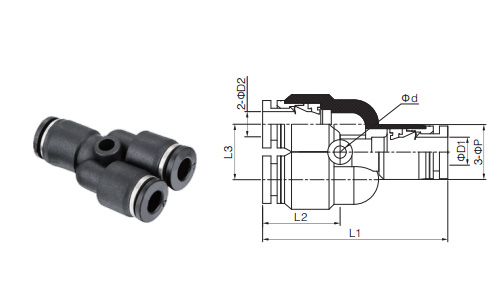

Model	ФD2	ФD	L1	L2	L3	ФP	Фd
PW6-4	6	4	37	14.5	13	13	3.2
PW8-6	8	6	43.5	17.5	14.5	14.5	3.2
PW10-8	10	8	49.5	20.5	18	18.5	4.2
PW12-10	12	10	54.5	21.5	21	21	4.2
PW14-12	14	12	55	21.5	26	26	4.2
PW16-12	16	12	55	21.5	26	26	4.2
PW16-14	16	14	55.5	22	26	26	4.2
PW1/4-5/32	1/4	5/32	37	14.5	13	13	3.2
PW5/16-1/4	5/16	1/4	43.5	17.5	14.5	14.5	3.2
PW3/8-5/16	3/8	5/16	49.5	20.5	18	18.5	4.2
PW1/2-3/8	1/2	3/8	54.5	21.5	21	21	4.2

PZA Series

PZA Seires

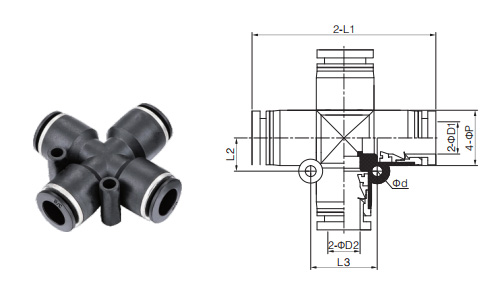

Model	ФD1	ФD2	ФP	L1	L2	L3	Фd
PZA4	4	4	11	37	7.5	15	3.2
PZA6	6	6	13	38	8	16	3.2
PZA8	8	8	14.5	45	9	18	3.2
PZA10	10	10	18.5	56	11.5	23	4.2
PZA12	12	12	21	58	13	26	4.2
PZA6-4	6	6	13	38	8	16	3.2
PZA8-6	8	8	14.5	45	9	18	3.2
PZA10-8	10	10	18.5	56	11.5	23	4.2
PZA12-10	12	12	21	58	13	26	4.2
PZA5/32	5/32	5/32	11	37	7.5	15	3.2
PZA3/16	3/16	3/16	11	37	7.5	15	3.2
PZA1/4	1/4	1/4	13	38	8	16	3.2
PZA5/16	5/16	5/16	14.5	45	9	18	3.2
PZA3/8	3/8	3/8	18.5	56	11.5	23	4.2
PZA1/2	1/2	1/2	21	58	13	26	4.2

PRG Series

PRG Series

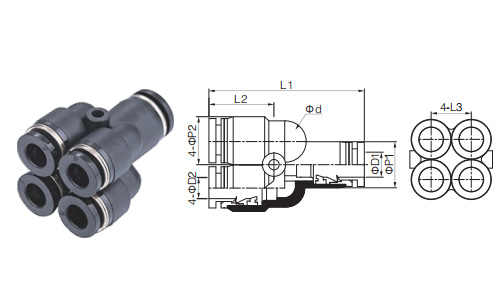

Model	ФD1	ФD2	L1	L2	L3	ФP1	ФP2	Фd
PRG8-4	8	4	38.5	15.5	13	14.5	13	3.2
PRG8-6	8	6	38.5	15.5	13	14.5	13	3.2
PRG6-6	6	6	38.5	15.5	13	14.5	13	3.2

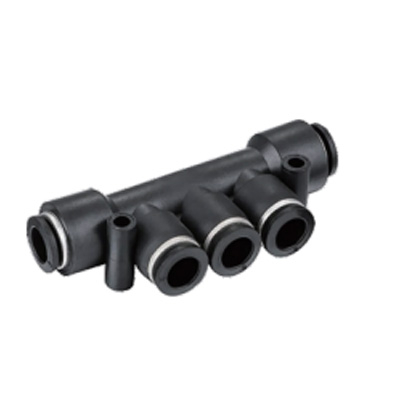

PK Series

PK Series

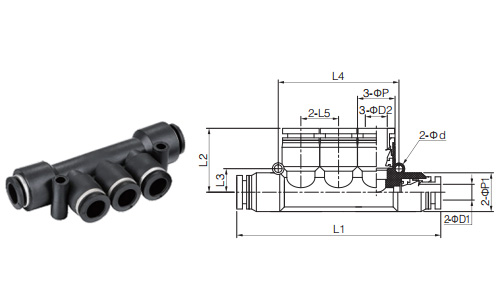

Model	ФD1	ФD2	L1	L2	L3	L4	L5	ФP1	ФP2	Фd
PK4	4	4	59	19	8	37.5	11	13	11	3.2
PK6	6	6	69	23	8.5	42	13	14.5	13	3.2
PK8	8	8	78.5	25	11	47.5	14.5	18.5	14.5	4.2
PK10	10	10	92.5	29.5	12.5	60	18.5	21	18.5	4.2
PK12	12	12	100	29.5	13	68.5	21	21	21	4.2
PK5/32	5/32	5/32	59	19	8	37.5	11	13	11	3.2
PK3/16	3/16	3/16	59	19	8	37.5	11	13	11	3.2
PK1/4	1/4	1/4	69	23	8.5	42	13	14.5	13	3.2
PK5/16	5/16	5/16	78.5	25	11	47.5	14.5	18.5	14.5	4.2
PK3/8	3/8	3/8	92.5	29.5	12.5	60	18.5	21	18.5	4.2
PK1/2	1/2	1/2	100	29.5	13	68.5	21	21	21	4.2

PKG Series

PKG Series

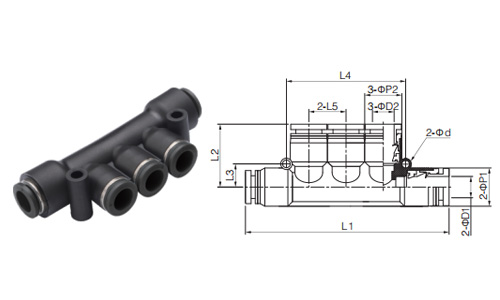

Model	ФD1	ФD2	L1	L2	L3	L4	L5	ФP1	ФP2	Фd
PK6-4	6	4	60	19	8	37.5	11	13	11	3.2
PK8-4	8	4	71	22	8.5	42	13	14.5	13	3.2
PK8-6	8	6	71	23	8.5	42	13	14.5	13	3.2
PK10-6	10	6	80.5	24	11	47.5	14.5	18.5	14.5	4.2
PK10-8	10	8	80.5	25	11	47.5	14.5	18.5	14.5	4.2
PK12-6	12	6	93.5	28	12.5	60	18.5	21	18.5	4.2
PK12-8	12	8	93.5	29	12.5	60	18.5	21	18.5	4.2
PK12-10	12	10	93.5	29.5	12.5	60	18.5	21	18.5	4.2
PK1/4-5/32	1/4	5/32	60	19	8	37.5	11	13	11	3.2
PK1/4-3/16	1/4	3/16	60	19	8	37.5	11	13	11	3.2
PK5/16-5/32	5/16	5/32	71	22	8.5	42	13	14.5	13	3.2
PK5/16-3/16	5/16	3/16	71	22	8.5	42	13	14.5	13	3.2
PK5/16-1/4	5/16	1/4	71	23	8.5	42	13	14.5	13	3.2
PK3/8-1/4	3/8	1/4	80.5	24	11	47.5	14.5	18.5	14.5	4.2
PK3/8-5/16	3/8	5/16	80.5	25	11	47.5	14.5	18.5	14.5	4.2
PK1/2-1/4	1/2	1/4	93.5	28	12.5	60	18.5	21	18.5	4.2
PK1/2-5/16	1/2	5/16	93.5	29	12.5	60	18.5	21	18.5	4.2
PK1/2-3/8	1/2	3/8	93.5	29.5	12.5	60	18.5	21	18.5	4.2
