DM Series Pneumatically Operated Diaphragm Angle Seat Valve

DM Series Pneumatically Operated Diaphragm Angle Seat Valve

Name: DM Series Pneumatically Operated Diaphragm Angle Seat Valve
Brand: NEU-MASTER
Rating: 5.0 (31 reviews)

DM Series Pneumatically Operated Diaphragm Angle Seat Valve
•2/2-way diaphragm valve for medium up to +180°C,Welded Ends, Port connection, DN 4-65， PA Actuator.
• High flow rate
• Long life cycle
• NC and NO universal actuators with modular universal accessory program up to control heads
• Deliverable with flow direction below or above seat
• Simple conversion of the control function

Model:
DM Series Pneumatically Operated Diaphragm Valve
Brand:
NEU-MASTER
Code:
DM10/20

Availability:



Inquire Add to Basket

Product Description

DM Series Pneumatically Operated Diaphragm Angle Seat Valve

2/2Ways Diaphragm Angle Seat Valve; Cast Valve Body;Weld Ends And Clamp Connection;Pipe Size :DN 4-50

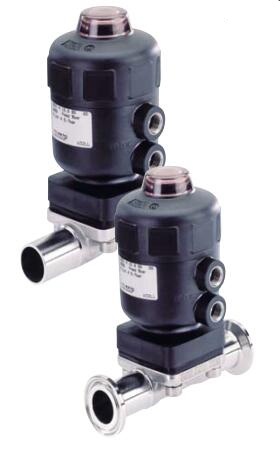

DM-Series-Pneumatically-operated-diaphragm-angle-seat-valve-1

PDF Catalog:

DM Pneumatically Operated Diaphragm Angle Seat Valve.pdf

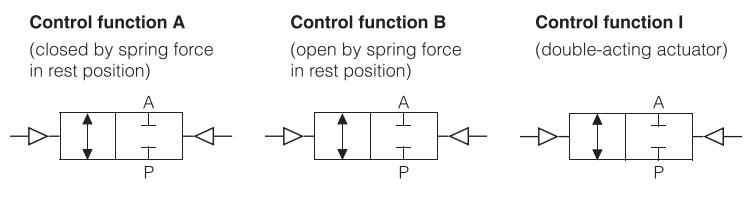

Product Symbol:

DM-Series-Pneumatically-operated-diaphragm-angle-seat-valve-Symbol

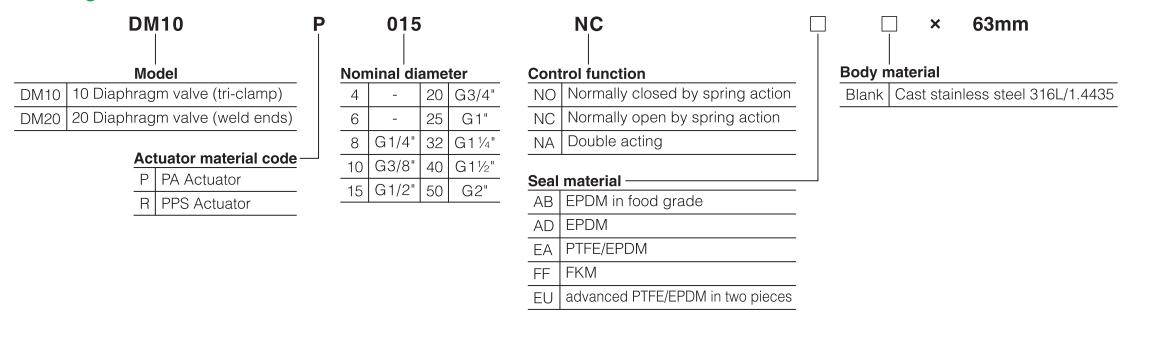

Product Ordering Code:

DM-Series-Pneumatically-operated-diaphragm-angle-seat-valve-Ordering-Code

Product Detailes:

Model	DN4/6	DN8	DN10	DN15	DN20	DN25	DN32	DN40	DN50
Control Function	2 ways Normal Close/Normal Open
Actuator Material	PA/PPS Actuator
Valve Body Material	Stainless Steel 316L
Pilot Pressure	Max.0.7Mpa
Diapgragm Material	EPDM(AB)/PTFE/EPDM(EA) EPDM(AD) Advanced PTFE/EPDM (EU) and FKM(FF) on Request
Operating Pattern	Pluger Pilot
Medium	Neutral Gases amd liquid ,high Purity,Sterile,aggressive or abrasive fliud
Ambient Temperature	PA Actuator -10～120℃
Control Medium	Neutral Gas or Air

Product Features:

Hermetical separation of fliud from the operating mechanism by diaphragm
Zero dead volume
Various surface finishes
Universal accessory program up to control heads

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the Angle Seat Valve , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: micro solenoid valve, miniature solenoid valve, Mini solenoid valve, small solenoid valve, Small solenoid are all for control the air direction for the air tools , air cylinders.
