TV300 Series Pneumatically Operated 3 Way Seat Valve (Manifold Valve Type )
NEU-MASTER
TV300 Manifold Valve
Availability: | |
---|---|

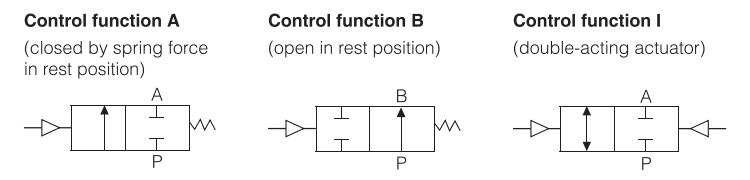

TV300 Series Pneumatically Operated 3 Way Manifold Seat Valve • TV300 Series Pneumatically Operated 3 Way Seat Valve (Manifold Valve Type) • 3/2-way valve for medium up to +180°C, • Tri-clamp connection DN 15-25 • Actuator:PA actuator;S.S actuator;Aluminium actuator • NC and NO universal actuators with modular universal accessory program up to control heads • Deliverable with flow direction below or above seat PDF Catalog: Product Symbol:Angle type 3 Way Manifold Seat valve |

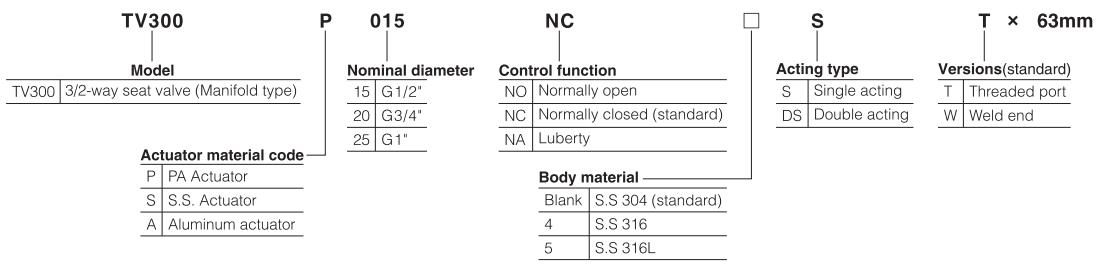

Product Ordering Code:
Product Detailes:
Model Angle Seat Valve | DN15 | DN20 | DN25 | |
Control Function | 3/2 ways Normal Close/Normal Open Pneumatically Operated 3 Way Valve | |||
Actuator Material | PA actuator;S.S actuator;Aluminium actuator | |||
Valve Body Material | Stainless Steel 304/316/316L | |||
Nominal Pressure | PN16(Body) | |||
Operating Method | Plunger Pilot | |||
Medium | Water,alcohol,oils,fuel,hydraulic fluid,alkaline solutions,salt solution,organic solutions,hot water steam | |||
Viscosity | Max 600m㎡/s | |||
Medium Temperature | -10+180°C, | |||
Ambient Temperature | PA Actuator -10~120℃; SS actuator Aluninum actuator:-10~140℃ | |||
Installation | As required,preferably with actuator in upright position | |||
Control Medium | Neutral gases,air | |||
Operating Pattern | Pluger Pilot | |||
Packing gland | PTFE V-rings with spring compensition (With Silicone Grease) | |||
Seat Seal | PTFE/FPM/NBR | |||
Stem Seal | PTFE/FPM | |||
Piston Seal | FPM/NBR |
Product Features:
1.3/2-way Seat Valve Pneumatically Operated , for medium up to +180℃,threaded port & tri-clamp connection DN15-50
2.For mixing or distributing mediums
3.Controlled by a pilot valve
4.Flow optimized body in stainless steel
5.Long service life and maintenance-free operation.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
