PVE Style Angle Seat Valve Actuator /With Solenoid Valve Control

PVE Style Angle Seat Valve Actuator /With Solenoid Valve Control

Name: PVE Style Angle Seat Valve Actuator /With Solenoid Valve Control
Brand: NEU-MASTER
Rating: 5.0 (56 reviews)

•PVE Series Pneumatic Angle Seat Valve Actuator
•2/3 way solenoid valve can be used in single acting angle seat valve;
•2/5 way solenoid valve can be used in double acting angle seat valve;
•EX-proof coils is optional
•For solenoid valve details requirement, Pis check NEU-MASTER catalogue

Model:
PVE Style Angle Seat Valve Actuator
Brand:
NEU-MASTER
Code:
PVE

Availability:



Inquire Add to Basket

Product Description

PVE Style Angle Seat Valve Actuator /With Solenoid Valve Control

•PVE Series Pneumatic Angle Seat Valve Actuator

•2/3 way solenoid valve can be used in single acting angle seat valve;

•2/5 way solenoid valve can be used in double acting angle seat valve;

•EX-proof coils is optional

•For solenoid valve details requirement, please check NEU-MASTER catalogue

PDF Catalog:

PVE Angle Seat Drain Valve actuator with solenoid valve PVS switch PVM manual override.pdf

PVE Series Pneumatic Angle Seat Valve Actuator

	Ex-proof coils is available	When the medium is flammable gas ,and the PVE actuator is needed , then the Ex-proof coil is necessary.

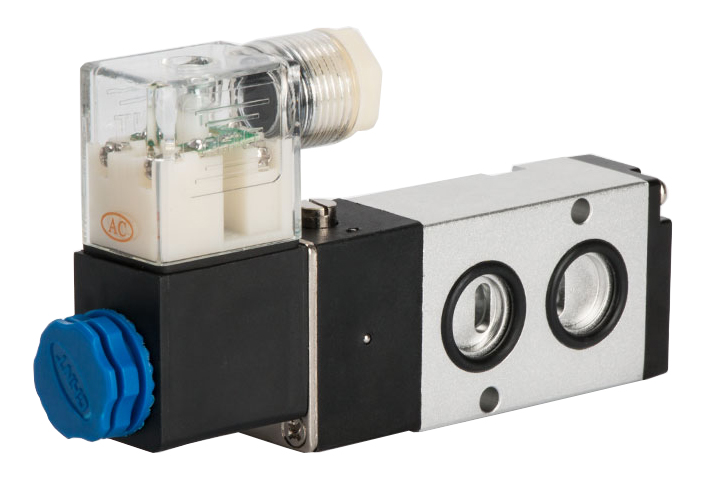

	●2/5 way solenoid valve can be used in d oubleacting angle seat valve; ●copper tubing & LOK-fittings is as the accessories. ●Valve Model: 4V210-08/4V310-08 https://www.neu-master.com/4V200-Series-Pneumatic-Solenoid-Valve-Air-Solenoid-Valve-5-2way-5-3way-pd6051779.html

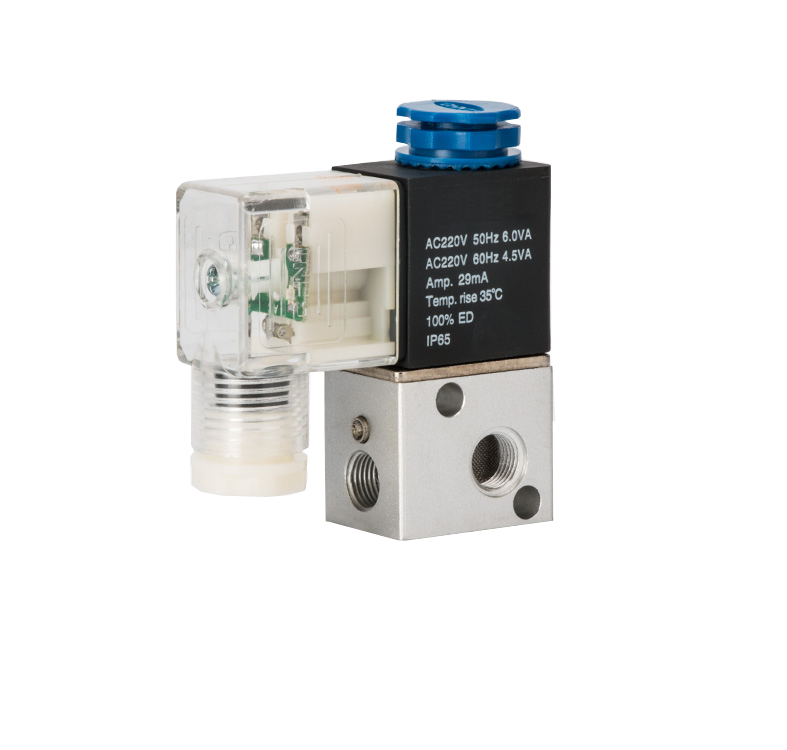

	●2/3 way solenoid valve can be used in single acting angle seat valve; ●Valve Model: 3V1-06/3V1-08 https://www.neu-master.com/3V1-Series-Air-Solenoid-Valve-Pneumatic-Solenoid-Valve-pd6639094.html
	2/5 way solenoid valve can be used in double acting angle seat valve; NAMUR-Adapter for pilot valve; Valve Model: 4V210-08/4V310-08 https://www.neu-master.com/4M-NAMUR-Series-Namur-Solenoid-Valve-Pneumatic-Valve-5-2-way-pd6092679.htm l
	2/3 way solenoid valve can be used in single acting angle seat valve; Valve Model: 3V210-08/3V310-08 https://www.neu-master.com/3V100-Series-Air-Solenoid-Valve-Pneumatic-Solenoid-Valve-3-2-Way-pd6422779.html

1 Year Standard Warranty

Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the PVE Angle Seat Valve actuator with solenoid valve, delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
