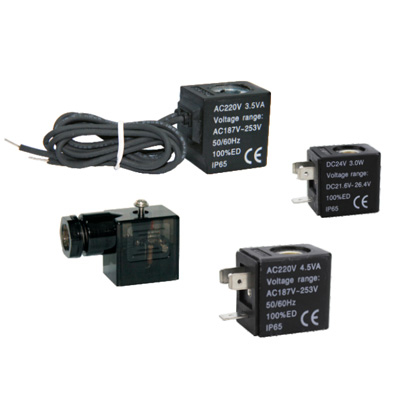

080/092 Spare Solenoid Valve Coil For 3V/4V/4M Series Pneumatic Valve
The Spare Coil For the 4V100 Series solenoid valve;
4M100 Series;3V100 Series ;3V200 Series;3V300 Series;4V200 Series;
4V300 Series;4V400 Series;4M200 Series;4M300 Series
The Solenoid valve coil voltage include : AC220V;AC110V;AC24V;DC24V;DC12V

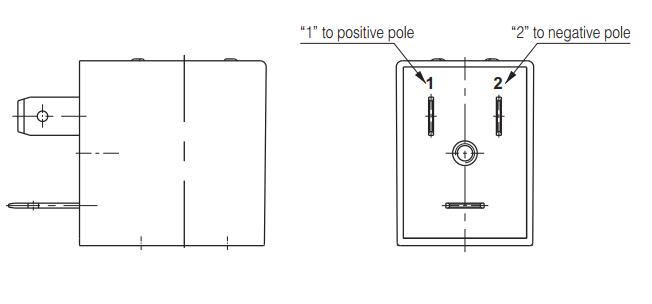

Note of terminal connection:
Coil terminal with DC specification has polar indicator lights, thus when wiring, notice positive and negative poles:
"1"shall be connected to positive pole.
"2" to negative pole.
If the poles are connected inversely, the indicator lights will not shine but valve still actuates.
080 Spare Solenoid Valve Coil Specification
Production series | Solenoid valve Coil type | Voltage | Coil inside connection deagram | Connector type | Connector inside connection diagram | Memo |
3V100 Series 3V200 Series 3V300 Series 4V200 Series 4V300 Series 4V400 Series 4M200 Series 4M300 Series |
CDA092 Terminal |
AC |
Coil | 4V210-005-P1 | - | Applied to CDA092 AC\DC type coil |
4V210-005-P2 |
LED Red |
Applied to CDA092 AC type coil | ||||
CDA092 Terminal |
DC |
4V210-005-P3 |
LED Green |
Applied to CDA092 DC type coil | ||
CLA092 Grommet |
AC |
- |
- |
- | ||
CLA092 Grommet |
DC |
- |
- |
- |
092 Spare Solenoid Valve Coil Specification
Production series | Coil type | Voltage | Coil inside connection deagram | Connector type | Connector inside connection diagram | Memo |
3V100 Series 3V200 Series 3V300 Series 4V200 Series 4V300 Series 4V400 Series 4M200 Series 4M300 Series |
CDA092 Terminal |
AC |
Coil | 4V210-005-P1 | - | Applied to CDA092 AC\DC type coil |
4V210-005-P2 |
LED Red |
Applied to CDA092 AC type coil | ||||
CDA092 Terminal |
DC |
4V210-005-P3 |
LED Green |
Applied to CDA092 DC type coil | ||
CLA092 Grommet |
AC |
- |
- |
- | ||
CLA092 Grommet |
DC |
- |
- |
- |
How about the lead time of the solenoid valve coil , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Solenoid valve coil, solenoid coil, 12V solenoid coil, solenoid coil 24v, 24v solenoid coil, solenoid coil 230v, valve solenoid coil are all for 3V/4V/4M Series Pneumatic Valve.
