K25J-D/Q Series Heavy Duty High Flow Rate Pneumatic Pilot Valve DC12V 24V AC110V 220V (5/2way)
K25J-D/Q Series Heavy Duty Pneumatic Pilot Valve/Air Solenoid Valve(4/2way)
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/4";1/8; 3/8",1/2" Operating Pressure : 0.2-1.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Solenoid Air Valve Type: 5port 2 position
As The Cut-Off Valve ,Strong Dust Resistance.
K25J-D-Q Series Heavy Duty Air Solenoid Valve.pdf

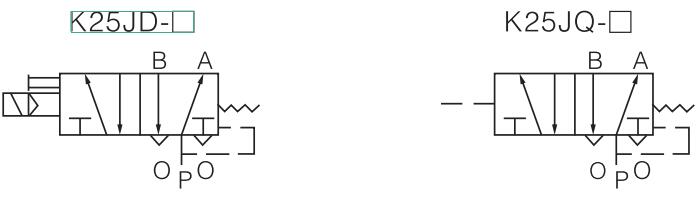

K25J-D/Q Pneumatic Pilot Valve Symbol:

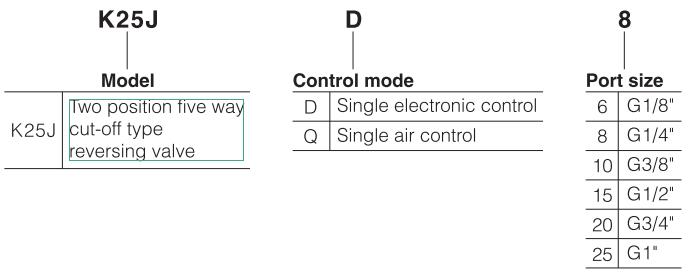

K25J-D/Q Pneumatic Pilot Valve Ordering Code:
K25J-D/Q Pneumatic Pilot Valve Specification:
Model Pneumatic Pilot Valve | K25JD-6 K25JQ-6 | K25JD-8 K25JQ-8 | K25JD-10 K25JQ-10 | K25JD-15 K25JQ-15 | K25JD-20 K25JQ-20 | K25JD-25 K25JQ-25 |
| Normal Diameter(mm) | 6 | 8 | 10 | 15 | 20 | 25 |
| Work Pressure | 0.15-0.8Mpa | |||||
| Commutation Time(s) | ≤0.06 | ≤0.08 | ≤0.12 | |||
| Commutation Frequence(Hz) | ≥10 | ≥8 | ≥5 | |||
| Ambient Temperature | -10～55°C | |||||
| Medium Temperature | -5～55°C | |||||
| Solenoid Voltage | Voltage:AC220V;AC110V;AC24V;DC24V;DC12V; | |||||
| Service Life | 〉1500000 Circles | |||||
Where the Heavy Duty High Flow Rate K25J-D/Q Pneumatic Pilot Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the K25J-D/Q Pneumatic Pilot Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Pneumatic Pilot Valve, Pneumatic Solenoid valve, Pneumatic solenoid, Air Solenoid, Pneumatic Valve,Compressed Air Solenoid Valve,Air Solenoid Valve 12V,Pneumatic Air Valve,Air Solenoid Valve 24V are all for control the air direction for the air tools , air cylinders.
