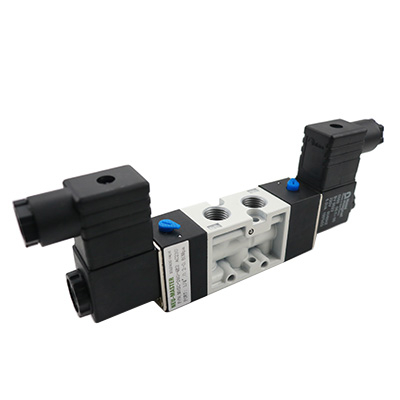

MVSC260 Series Air Solenoid Valve 5/2Ways 5/3ways 12VDC/24VDC/220VAC/110VAC
Why Chose the Mindman standard Air Solenoid Valve Series solenoid valve ?
1. Pilot-oriented mode: Internal pilot or external pilot. Equivalent with MindMan MVSC-260 Series Air Solenoid Valve
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication to the electric Solenoid Valve.
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional .
8. Solenoid Control Valve :Bigger flow rate than other standard air solenoid valve if with the same pipe size.
MVSC260 Series Air Solenoid Valve Catalog.pdf

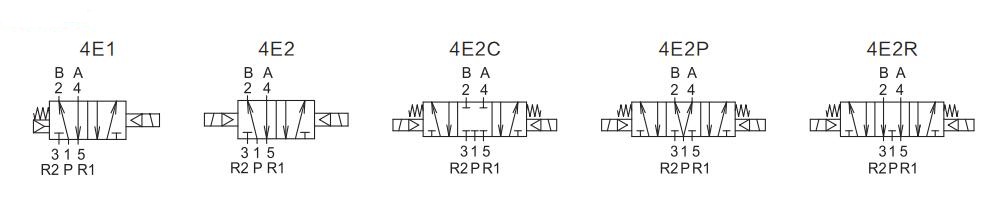

MVSC-260 Air Solenoid Valve Symbol:
Air Solenoid Valve 3 ways : The valve piston will move between two poles .
Air Solenoid Valve 4 ways: 4E2-The valve piston will move between two poles .
4E2/4E2P/4E2R - The valve piston will move in three position.

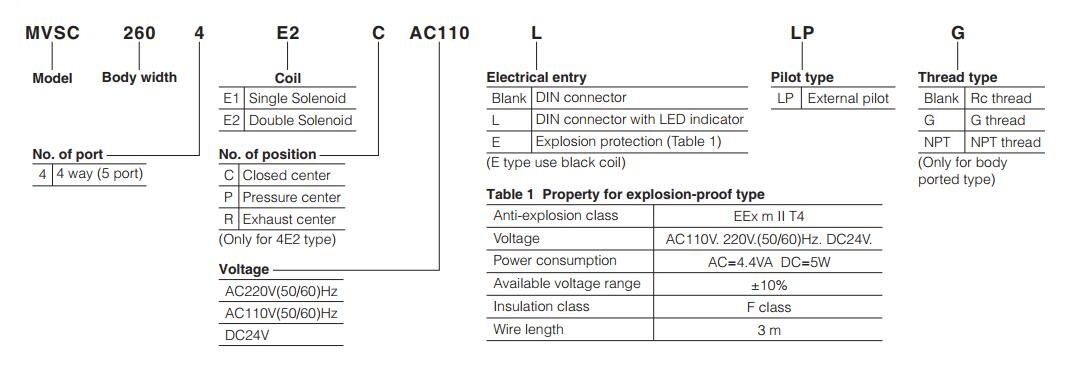

MVSC-260 Air Solenoid Valve Order Code:
The MVSC260 Air Solenoid Valve Specification:
Air Solenoid Valve Model | 4E1 | 4E2 | 4E2C.P.R |
Bore No. | 8A | ||
Port size | Rc1/4 | ||
No. of port | 5 | ||
No. of position | 2 | 3 | |
Medium | Air | ||
Operating perssure range | 0.2~0.8MPa | 0.3~0.8MPa | |
Operating pressue (LP) | 0~0.8MPa | ||
External pilot pressure (LP) | 0.2~0.8MPa | 0.3~0.8MPa | |
Proof pressure | 1MPa | ||
Effective orifice | 18mm2 | 16mm2 | |
Ambient temperature | -5~+50℃ (No freezing) | ||
Reponse time | 40ms | ||
Voltage | AC110V, 220V(50/60)Hz, DC24V | ||
Power consumption | AC=4.8/4.4VA, 6/4.9VA DC2W | ||
Available voltage range | ±10% | ||
Insulation class | F Class | ||
Weight | 228g | 314g | 444g |
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
Where the solenoid air valve were used ? (Appliliance)
Normally it were used to control the air cylinder(Pneumatic cylinder) .
MVSD180/220-3E1 For controlling the single acting cylinder.
MVSD180/220-3E2 For controlling the single acting cylinder.
Normally we don't use the 3E1 to control the double acting cylinder . As two sets solenoid valve to be needed . That will increase the cost , and waste the space .
MVSC 220/260/300/460 4E1,4E2,4E2C/P/R are perfectly for controling the doubule acting air cylinder .
What's kind of thread we could supply for the Air Solenoid Valve ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
The weight of the Air Solenoid Valve :
MVSC260-4E1: 0.228Kgs;MVSC260-4E2: 0.314Kgs;MVSC260-4E2C/P/R: 0.444Kgs
Is the sample for free ?
Yes , if one sample . Not include the Express fees.
Certification: ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air solenoid Valve, Pneumatic Solenoid Valve, Pneumatic Valve, Pneumatic Solenoid, 24v solenoid valve are all for control the air direction for the air tools , air cylinders.
