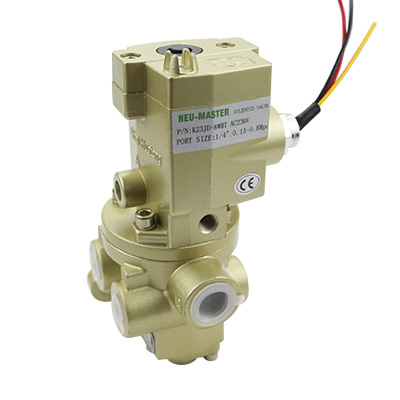

K25-JD-W Series Heavy Duty Cut-Off Pneumatic Directional Control Valve (5/2way) DC12V 24V AC220V 110V
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/4";1/8; 3/8",1/2" 3/4",1",1-1/4",1-1/2" Operating Pressure : 0.2-0.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Solenoid Air Valve Type: 5 port 2 position
K25J-D-WUXI-Series Heavy Duty Pneumatic Directional Control Valve.pdf

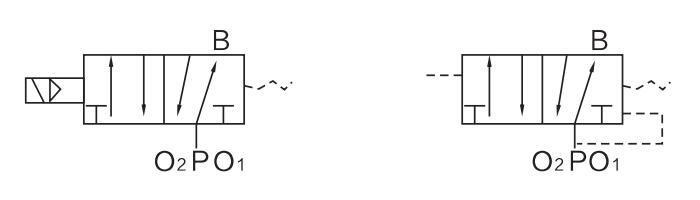

Pneumatic Directional Control Valve Symbol:

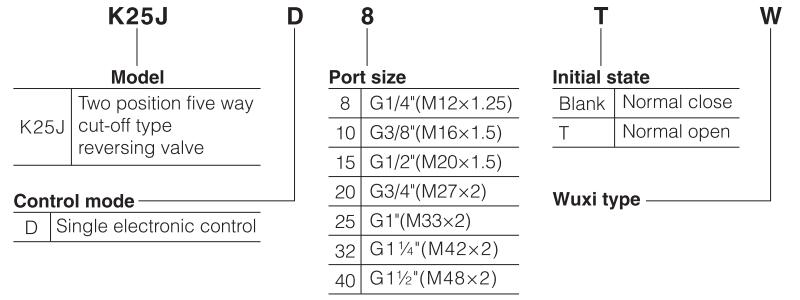

Pneumatic Directional Control Valve Ordering Code:
Pneumatic Directional Control Valve Specification:
Model Heavy Duty Pneumatic Directional Control Valve | K25J-8W | K25J-10W | K25J-15W | K25J-20W | K25J-25W | K25J-32W | K25J-40W |
| Normal Diameter(mm) | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
| CV Value | 20 | 35 | 60 | 120 | 190 | 300 | 400 |
| Max Work Pressure | 1.0Mpa | ||||||
| Minimum Control Pressure | 0.3Mpa | ||||||
| Minimum Work Pressure | 0.2Mpa | ||||||
| Commutation Time | ≤0.04 | ≤0.06 | ≤0.1 | ≤0.15 | |||
| Commutation Frequency(Hz) | ≥10 | ≥8 | ≥4 | ≥3 | |||
| Ambient Temperature | -5～55°C | ||||||
| Medium Temperature | 0～55°C | ||||||
| Solenoid Voltage | Voltage:AC220V;AC110V;AC24V;DC24V;DC12V; | ||||||
| Service Life | 〉1500000 Circles | ||||||
Where the Heavy Duty High Flow Rate Pneumatic Directional Control Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Pneumatic Directional Control Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Pneumatic Directional Control Valve, high flow solenoid valve, Pneumatic solenoid valve, Air Pilot Valve, Pneumatic Valve are all for control the air direction for the air tools , air cylinders.
