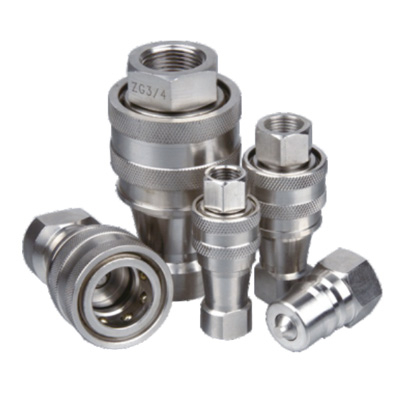

KZF Series Stainless Steel Type Quick Couplings

KZF Series Stainless Steel Type Quick Couplings

Materials
Coupling: Stainless steel(SUS304 OR SUS316)
Nipple:Stainless steel (SUS304 OR SUS316)
Product feature
1.Meets the requirements of ISO7241-1-B series
2.Ball locking mechanism.
3.Couplers have a double oring seal for redundancy in low pressure and vacuum applications.
4.Captive valve seal assures poppet sealing The valve seal is positively
captured by the metal popet to minimize seal washout or damage frow high velocity fluid.
5.The durable-ball-locking mechanism ensures a reliable connection every time.
6.Couplers and nipple are precision machined from solid bar stock.

Availability:



Inquire Add to Basket

Product Description

Interchange

Nitto SP,Parker 60

Ordering code

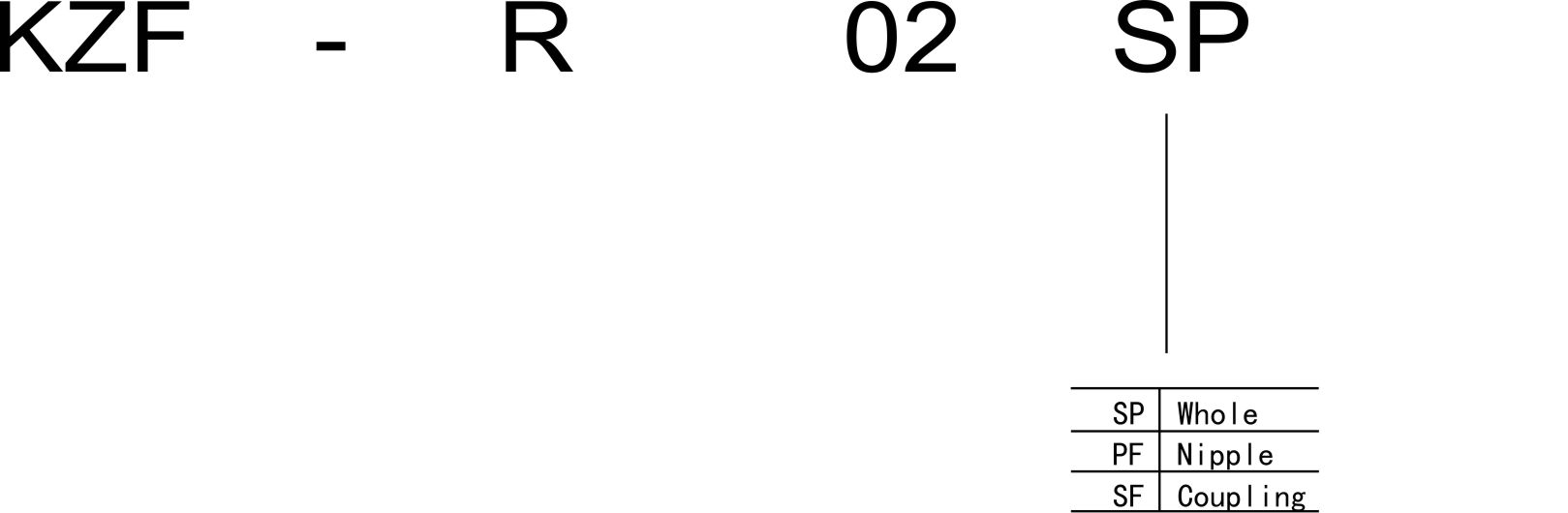

KZF-R订购码

Specifications

Body size(Inch)	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2
Rated pressure(MPa)	14	14	14	10.5	10.5	7	7	7	7
Rated flow(L/Min)	3	12	25	45	105	185	295	378	750
Temperture range(std seals)	-20℃~+80℃
Standard seal material is NITRILE

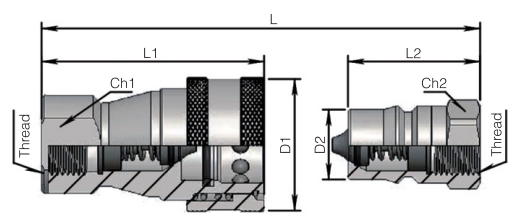

Dimensions

KZF Series Stainless Steel Type Quick Couplings

PART NO.	ISO	Thread	L	L1	L2	D1	D2	Ch1	Ch2
KZF-R01SP	5	Rc1/8	58	48	29	24	10.9	14	14
KZF-R02SP	6.3	Rc1/4	72	58	36	28	14.2	19	17
KZF-R03SP	10	Rc3/8	80	65	40	35	19.1	21	21
KZF-R04SP	12.5	Rc1/2	88	72	44	45	23.5	29	29
KZF-R06SP	20	Rc3/4	104	88	52	55	31.4	35	35
KZF-R08SP	25	Rc1	127	105	62	65	37.8	41	41
KZF-R10SP	32.5	Rc1-1/4	140	115	70	77	-	65	54
KZF-R12SP	40	Rc1-1/2	150	124	75	88	-	63	63
KZF-R16SP	50	Rc2	160	132	80	108	-	77	77
