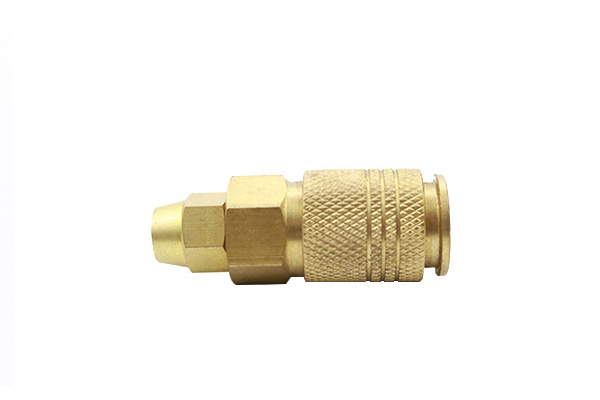

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings

Share to:
sharethis sharing button
Flow Capacity:925L/Min
Nominal flow dia:5.5mm
Material:
Socket:Nickel-plated brass/steel
Plug:Hardened zinc-plated steel

Temperature range(NBR):-20℃ to+100℃
Max.working pressure:35Bar

Standaed and Change:
ISO 6150B-1/4, MIL-C-4109 1/4,Legris series23\24,Rectus 23ka\24ka,
Parker 20-1/4,30-1/4,Tema 1400,Hansen 3000,Cejn 310

Feature:
One-hand operated.High-flow capacity.Low connection force.
Availability:
Inquire Add to Basket

Dimensions

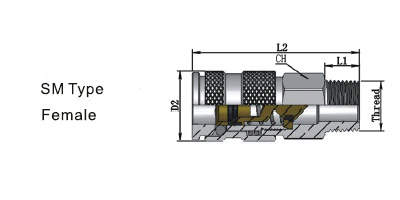

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings




PART   NO.

Info

Thread

D2

L1

L2

CH

310-SM

R1/4

23

12

59

19

R3/8

23

12

59

19

R1/2

23

17

60

22

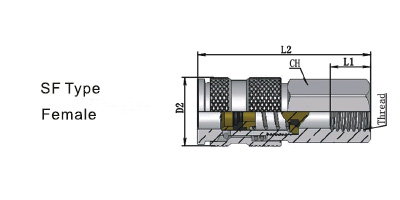

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings1



PART   NO.

Info

Thread

D2

L1

L2

CH

310-SF

G1/4

23

10

55

19

G3/8

23

10

55

19

G1/2

23

12

57

24

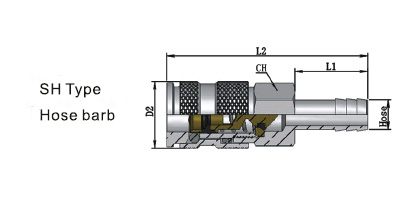

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings2


PART   NO.

Info

Hose

D2

L1

L2

CH

310-SH

6

23

23

73

19

8

23

23

73

19

10

23

23

73

19

13

23

23

73

19

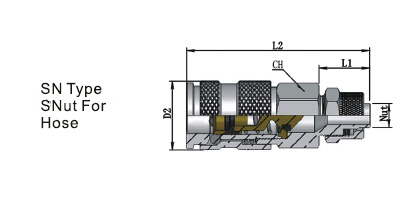

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings3


PART   NO.

Info

Nut

D2

L1

L2

CH

310-SN

8*6

23

13

60

19

10*8

23

17

64

19

12*9

23

17

64

19

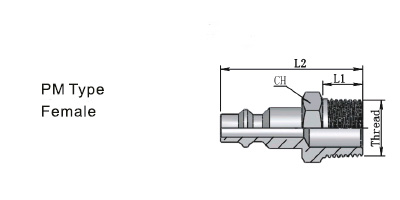

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings4


PART   NO.

Info

Thread

L1

L2

CH

310-PM

R1/8

9

39

13

R1/4

12

42

14

R3/8

12

42

27

R1/2

17

48

22

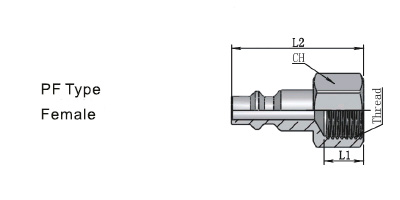

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings5


PART   NO.

Info

Thread

L1

L2

CH

310-PF

G1/8

7

36

14

G1/4

9

36

17

G3/8

9

36

19

G1/2

12

39

24

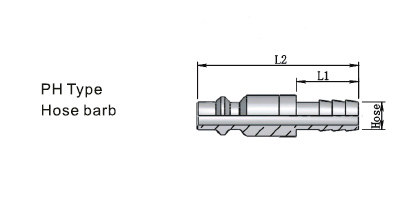

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings6

PART   NO.

Info

Hose

L1

L2

310-PH

4

25

51

6

25

51

8

25

51

10

25

51

13

25

51

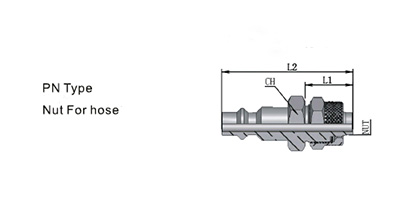

Series 310 ISO-B6 standard Type Pneumatic Quick Couplings7

PART   NO.

Info

Nut

L1

L2

CH

310-PN

6*4

13

37

14

8*6

13

37

14

10*8

17

45

17

12*9

17

45

17
