Series TSP Japanese Style Open Type Hydraulic Quick Couplings

Series TSP Japanese Style Open Type Hydraulic Quick Couplings

Features:
Non-valced couplers have minimum flow resisrance
for maximum cooling
Couplers and nipple are precision machined from solid bar stock.
Steel ,Brass,Stainless steel are available upon request
Interchange:
Nitto TSP series

Availability:



Inquire Add to Basket

Product Description

Series TSP Japanese Style Open Type Hydraulic Quick Couplings Symbol:

Series ST Open Type Hydraulic Quick Couplings

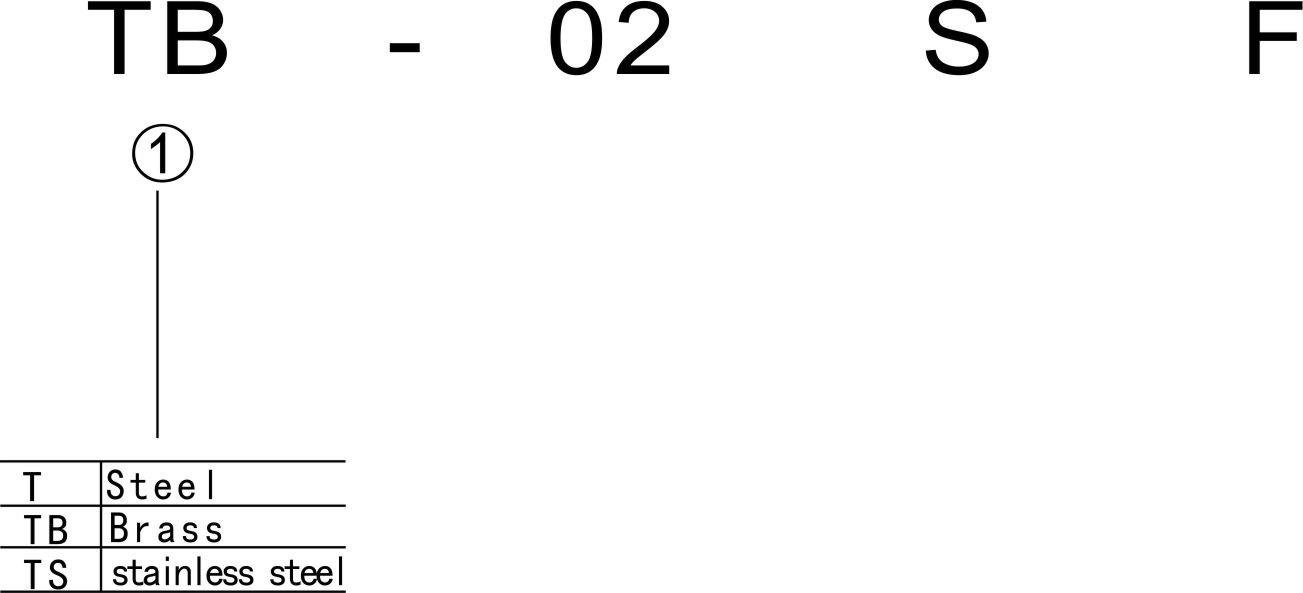

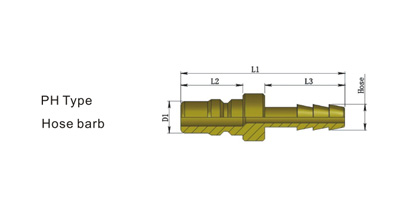

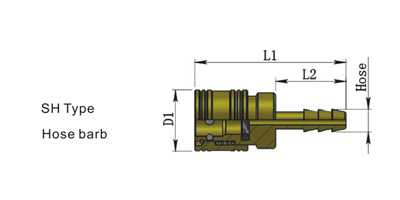

Ordering Code:

SPECIFICATIONS
Body Size(lnch)	1/8	1/4	3/8	1/2	3/4	1
Rated [ressure (Mpa)	15	15	15	15	15	15
Rated Flow (L/Min)	15	25	40	120	350	550
Temperture Range(NBR)	-20℃~80℃

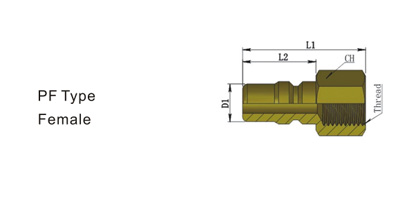

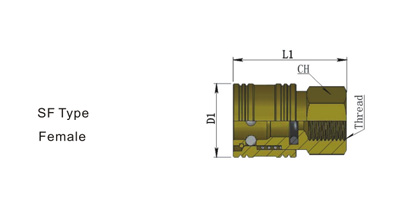

PF TYPE

PART NO.	Thread	D1	L1	L2	CH
TB-1PF	RC1/8	8	26	15.5	14
TB-2PF	RC1/4	10.9	34	18	17
TB-3PF	RC3/8	14.1	38	21	21
TB-4PF	RC1/2	18.9	45	24	29
TB-6PF	RC3/4	23.4	51	28	35
TB-8PF	RC1	34.1	60	36	41

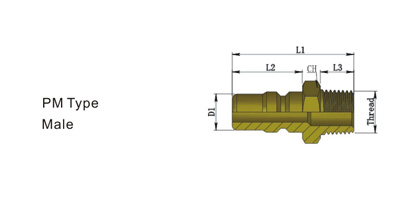

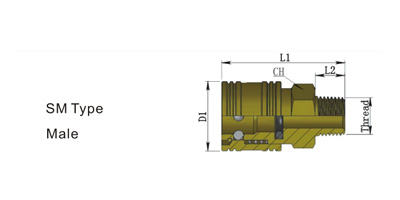

PM TYPE

PART NO.	Thread	D1	L1	L2	L3	CH
TB-1PM	RC1/8	8	32	15.5	9	12
TB-2PM	RC1/4	10.9	38	18	13	17
TB-3PM	RC3/8	14.1	43	21	13	17
TB-4PM	RC1/2	18.9	52	24	17	22
TB-6PM	RC3/4	23.4	59	28	19	32
TB-8PM	RC1	34.1	73	36	22	41
